Animation Editor — Integration Skill

Use this skill when the user asks to "add animation editor", "sprite animation tool",

"preview animations", "edit spritesheet frames", "crop sprites", or "bake spritesheet".

WHAT IT DOES

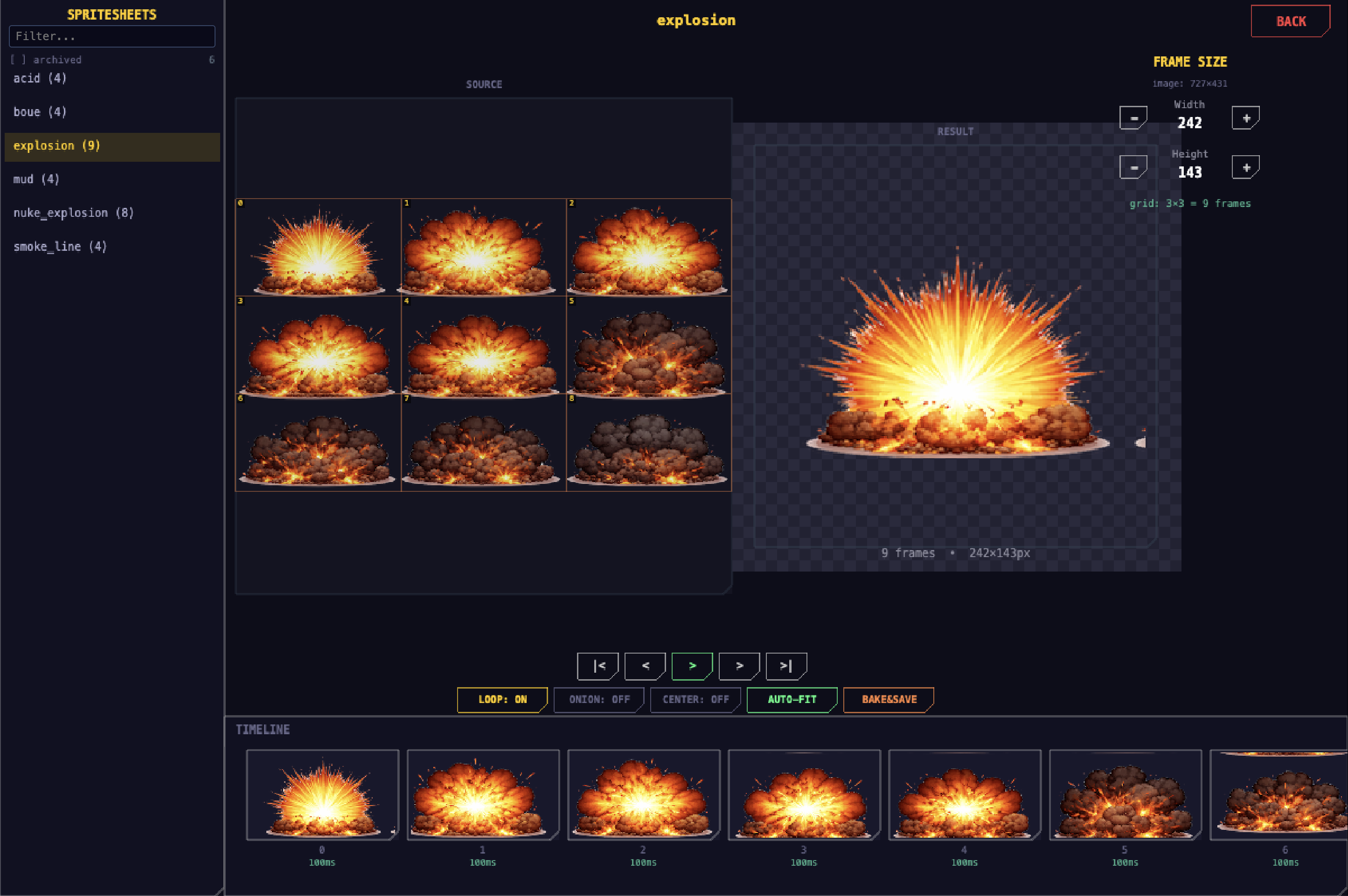

A full spritesheet animation editor built as a Phaser 3 scene. Load any spritesheet,

define frame sequences with per-frame timing, crop bounding boxes with pixel-perfect

precision, preview with onion skinning, and bake optimized sprite strips.

REQUIREMENTS

• Framework: Phaser 3.60+
• Language: TypeScript (strict mode)
• Dependencies: None (self-contained, no EventBus needed)
• Storage: Uses localStorage for persistence (key: rfd_anim_defs)
• Files: 5 TypeScript files (~2,300 LOC total)

FILE STRUCTURE

animation-editor/
  AnimationPreviewScene.ts   — Main scene entry point, keyboard shortcuts, playback loop
  AnimPreviewState.ts        — Shared mutable state interface
  SourcePanel.ts             — Left panel: spritesheet grid, bbox handles, pixel analysis
  PreviewPanel.ts            — Right panel: live preview, onion skin, bake & export
  AnimToolbar.ts             — Bottom: timeline, frame props, sheet props, sidebar
  layoutConstants.ts         — Shared geometry constants (panel sizes, offsets)

INSTALL

1. Copy the animation-editor/ folder into your project's src/scenes/ directory.
1. Register the scene in your Phaser game config:

import { AnimationPreviewScene } from './scenes/animation-editor/AnimationPreviewScene';

const config: Phaser.Types.Core.GameConfig = {
  // ... your existing config
  scene: [
    // ... your existing scenes
    AnimationPreviewScene,
  ],
};

1. To use saved animations at boot time, call the registration helper:

// In your BootScene.create() or preload completion:
import { registerSavedAnimations } from './scenes/animation-editor/AnimationPreviewScene';

registerSavedAnimations(this); // 'this' is the current Phaser.Scene

INTEGRATION

Launch the editor from any scene:

// Open the animation editor
this.scene.start('AnimationPreviewScene');

// Or launch as overlay (keeps current scene running underneath):
this.scene.launch('AnimationPreviewScene');

Use saved animation definitions:

import { loadAnimDefs } from './scenes/animation-editor/AnimationPreviewScene';
import type { AnimDef } from './scenes/animation-editor/AnimationPreviewScene';

// Load all saved animation definitions
const allDefs: Record<string, AnimDef> = loadAnimDefs();

// Each AnimDef contains:
// {
//   frameWidth: number,
//   frameHeight: number,
//   frameOrder: number[],        // indices into spritesheet
//   frames: AnimFrameDef[],      // per-frame: duration, offsetX/Y, scaleX/Y, bbox
//   archived: boolean
// }

Bake server endpoint (optional):

If you want the bake-and-save feature, add this API endpoint to your dev server:

// POST /api/save-spritesheet
// Body: { filename: string, archiveFile: string, dataUrl: string }
// Response: { savedAs: string, archivedAs: string | null }

Without this endpoint, the editor still works — it just can't export baked PNGs to disk.

CONFIGURATION

Constant	File	Default	Description
SIDEBAR_W	layoutConstants.ts	200	Left sidebar width (spritesheet list)
TIMELINE_H	layoutConstants.ts	160	Bottom timeline height
dragDistanceThreshold	AnimationPreviewScene.ts	10	Min px to distinguish drag from click
Alpha threshold	SourcePanel.ts	10	Min alpha value for pixel detection (0-255)

STATE INTERFACE

interface AnimPreviewState {
  sheetKeys: string[];              // discovered spritesheet keys
  selectedSheet: string;            // current sheet being edited
  frameCount: number;               // total frames in current sheet
  selectedFrame: number;            // -1 = all frames / play mode
  animDef: AnimDef;                 // current animation definition
  allDefs: Record<string, AnimDef>; // all saved definitions
  playing: boolean;                 // playback active
  onionEnabled: boolean;            // show prev/next frame overlay
  crosshairEnabled: boolean;        // show center crosshair
}

KEY METHODS

AnimationPreviewScene

• create() — Initialize all panels, discover spritesheets, build UI
• update(time, delta) — Handle playback timer

SourcePanel

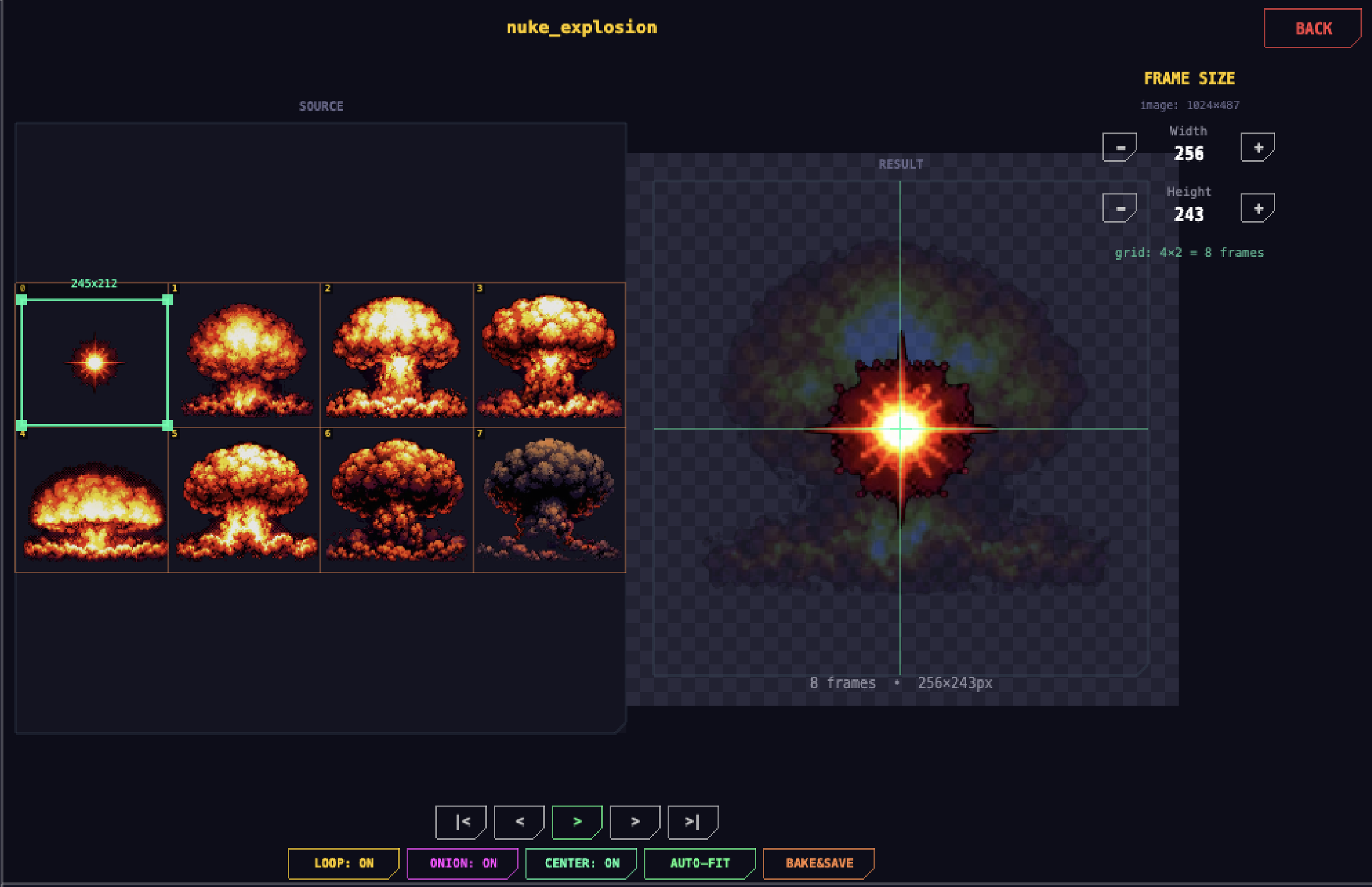

• autoFitFrames() — Flood-fill pixel analysis for automatic bounding box detection
• refreshSheetView() — Redraw grid overlay and frame numbers
• drawBboxOverlay(frameIdx) — Create draggable bbox corner handles

PreviewPanel

• showFrame(idx) — Render frame with onion skins and bbox
• bakeAndSave() — Batch-bake all frames to PNG, POST to server
• hasPendingAdjustments() — Check if unsaved changes exist

AnimToolbar

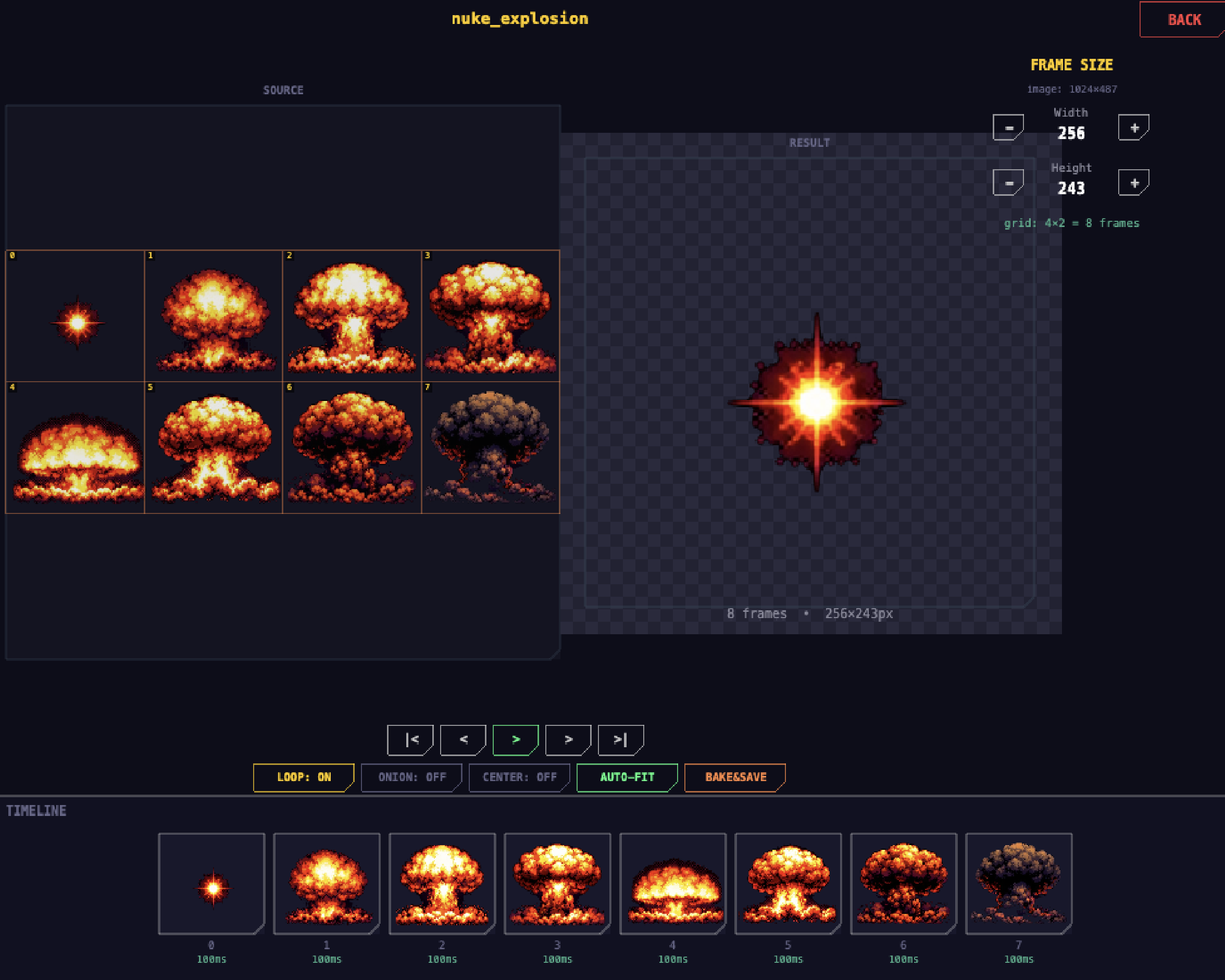

• buildTimeline() — Frame thumbnails with drag-to-reorder
• buildFrameProps() — Duration, offset, scale, bbox spinners

EVENTS

This codon does NOT use an EventBus. All communication is via:

• Shared AnimPreviewState object (passed to all sub-panels)
• Direct callback references (AnimToolbarCallbacks interface)

interface AnimToolbarCallbacks {
  autoSave(): void;
  selectSheet(key: string): void;
  startPlayback(): void;
  stopPlayback(): void;
  showFrame(idx: number): void;
  reSliceTexture(): void;
}

GOTCHAS

1. Spritesheets must be preloaded — The editor discovers sheets via this.textures.list. Load your spritesheets in a preload scene before launching the editor.
1. Only sheets with frameTotal > 2 are shown — Single-frame images are filtered out.
1. localStorage key collision — Uses rfd_anim_defs. If you have multiple projects on localhost, they'll share definitions. Change the key if needed.
1. Bake endpoint is optional — Without /api/save-spritesheet, the editor works for previewing and defining animations, but can't export PNGs to disk.
1. ESC exits — Pressing Escape will leave the editor scene. If there are unsaved bake changes, it prompts first.
1. Canvas size matters — Layout constants assume a game canvas of ~1200x800. Adjust layoutConstants.ts for different resolutions.
